The chemical industry drives progress across countless sectors, but it comes with its share of challenges, from high energy demands to environmental pressures. As the industry pushes for more sustainable solutions, innovative approaches like air-to-water waste heat recovery (WHR) systems are stepping into the spotlight.

The Chemical Industry at a Glance

The chemical manufacturing industry spans a range of specialized subtypes, each serving different sectors like agriculture, consumer products, and industrial applications. Here are some of the main categories:

Basic chemicals, also called commodity chemicals, are produced in high volumes and serve as the building blocks for other products. Key segments in this group include petrochemicals like ethylene and propylene, inorganics such as sulfuric acid and chlorine, and organic chemicals that form the backbone for producing plastics, synthetic fibers, and more.

Specialty chemicals are high-value products produced in smaller volumes and designed with applications in mind. Examples include adhesives, coatings, dyes, and water treatment chemicals. Industries like automotive, electronics, and construction depend on these precision-formulated chemicals for their unique properties.

Agrochemicals include pesticides, herbicides, fungicides, and fertilizers, all essential tools in modern agriculture. The sector is increasingly focused on developing eco-friendly formulations, such as biodegradable pesticides and low-toxicity herbicides, to reduce runoff and soil contamination.

Consumer chemicals are used in household products such as personal care items, cosmetics, cleaning agents, and fragrances. Since these products directly interact with consumers, manufacturers place a strong emphasis on safety, quality, and consistency, alongside regulatory compliance and market appeal.

Reclaiming Trust Through Sustainability

Over the years, the chemical industry has faced repeated public criticism for environmental issues, like PFAS contamination, groundwater contamination from industrial chemicals such as trichloroethylene (TCE), and plastic pollution, all of which have raised concerns about long-term ecological impact. This erosion of public trust (and inducement of chemophobia) directly influences stricter regulatory oversight, reduces consumer confidence in products, and creates skepticism among investors wary of environmental liabilities.

To shift this reputation, the industry is increasingly focusing on sustainable practices and cleaner technologies to build a more eco-friendly image. Here are some key challenges the industry is looking to address:

• Energy Consumption and Costs: The industry’s reliance on high-temperature processes, such as distillation and reaction heating, demands immense energy, often generated from fossil fuels. The chemical industry consumes roughly 30% of all energy used by the manufacturing sector in the U.S.


• Energy Costs: Energy is not only an environmental concern – it’s a cost concern as well. Manufacturers spend around $60 billion annually on energy, making it the second most energy-intensive sector (behind only the pulp and paper industry).


• Emissions and Environmental Impact: Chemical manufacturing is one of the largest greenhouse gas emitters, contributing not only CO₂ but also a range of other chemicals, including ethylene, propene, and benzene, which are integral to production processes. While reducing primary chemical emissions poses unique challenges, there is significant potential to cut CO₂ emissions through improved energy efficiency and sustainable practices.

To hit their ambitious net-zero targets, many chemical companies are doubling down on emissions cuts. This means embracing energy-efficient technologies, like low-energy reaction methods and optimized distillation processes. Capturing and reusing process heat – a major energy drain – is also becoming a priority.

Air-to-Water Waste Heat Recovery: Reclaiming Energy for Reuse

Air-to-water waste heat recovery (WHR) systems capture excess thermal energy from exhaust air streams and transfer it to water, effectively reclaiming energy that would otherwise be lost. In this setup, heat exchangers draw thermal energy from hot exhaust air, warming the water, which can then be redirected to support various plant operations. This cyclical energy reuse not only reduces the facility’s dependence on new energy inputs but also provides measurable energy savings and lowers greenhouse gas emissions by maximizing resource efficiency.

4 Major Sources of Waste Heat

Several processes within the chemical industry generate waste heat that is just released into the atmosphere. This is a lost opportunity to repurpose the energy stored in the heated air.

1. Steam Boilers Steam boilers are fundamental in chemical plants for tasks like heating, reactor temperature control, and powering distillation. Boilers continuously heat make-up water to high temperatures, and the combustion process releases substantial heat through exhaust gases. This exhaust, often at hundreds of degrees, represents a major source of waste heat.

2. Reactors Reactors are core vessels in chemical manufacturing where raw materials undergo chemical reactions to form new products. Each type of reactor is designed for specific reactions and processes, often generating considerable heat as a byproduct:

• Batch Reactors: Common in pharmaceuticals and specialty chemicals, batch reactors operate in sealed environments with controlled reactant input. They require strong cooling systems due to rapid heat build-up in exothermic reactions.


• Continuous Stirred-Tank Reactors (CSTRs): Used for large-scale chemicals like acids and polymers, CSTRs manage continuous reactions with cooling jackets or external heat exchangers to keep temperatures stable.


• Plug Flow Reactors (PFRs): Key for high-rate reactions in petrochemicals, PFRs drive reactants through tubular reactors. Heat builds along the flow, so efficient cooling is crucial to prevent hot spots.


• Fixed-Bed Reactors: Essential for catalytic processes like ammonia production, fixed-bed reactors pass reactants over a catalyst bed. Precise cooling is required to avoid overheating and catalyst damage.


• Fluidized-Bed Reactors: Common in catalytic cracking, fluidized-bed reactors suspend catalyst particles in gas or liquid flows, which generates high heat. Built-in cooling coils manage the temperature for consistent reaction rates.

3. Distillation Columns

Distillation columns separate chemical mixtures by boiling point differences, with key types including tray columns, packed columns, fractionating columns, and reactive distillation columns. As mixtures are heated, vapor rises through the column, carrying significant thermal energy. This heat is often released as overhead vapors and through side draws.

4. Cooling Towers

Cooling towers are specialized heat rejection systems designed to remove waste heat from industrial processes by cooling circulating water. They work by circulating heated water from processes like distillation, reactors, or other equipment flows over fill material, increasing its contact with air. As air flows through the tower, a portion of the water evaporates, effectively removing heat from the remaining water. The cooled water is then collected and recirculated, while the evaporated water, carrying waste heat, exits the tower as a visible plume.

4 Ways to Use Recovered Waste Heat

If waste heat is captured and redirected to preheat water, it can be used in a number of ways around the facility, creating an energy recycling loop that minimizes the demand for new energy input. Key applications of recovered waste heat include:

1. Facility Heating

Chemical plants often contain areas requiring climate control, such as laboratories, storage areas, and offices. When using WHR systems, recovered process heat is passed through a heat exchanger to preheat water, and the now-heated water can then be piped to radiators or air handling units to warm these important spaces. This practice provides a steady, cost-effective heating source, enhancing comfort while reducing heating bills. 2. Drying Processes In chemical manufacturing, drying stages remove moisture from products like powders, granules, or crystals. This process usually requires heated air, which is circulated through drying equipment, such as fluidized bed dryers, rotary dryers, or spray dryers. Each dryer type relies on high temperatures to evaporate water content effectively. Air-to-water waste heat recovery (WHR) offers a powerful way to cut energy costs in drying systems. By repurposing waste heat from exhaust air to preheat the incoming air, these systems reach drying temperatures faster and more efficiently, all while using less energy.

3. Preheating Make-Up Water

Most industrial boilers run on natural gas, a hefty source of CO₂ emissions. By using air-to-water waste heat recovery (WHR) to preheat boiler make-up water, plants can cut down on the amount of natural gas needed. This preheating step means boilers don’t have to work as hard, reducing and trimming both costs and emissions. For facilities that rely on steam, WHR offers a smart way to save energy and shrink their carbon footprint.

4. Auxiliary Systems in Reactor Heating

The excess heat from exothermic reactions can be diverted to the support auxiliary systems that keep reactors operating smoothly and efficiently. Though not part of the main reaction, these systems handle key tasks like:

• Feedstock Preheating Systems: Heat reactants before they enter the reactor, bringing them to the ideal temperature for efficient reactions.


• Cooling Systems: Circulate fluids around the reactor or through heat exchangers to prevent overheating from exothermic reactions.


• Temperature Control Units: Maintain steady reaction rates and product quality by adjusting the reactor’s internal temperature as needed.


• Recirculation Pumps: Ensure consistent flow and even heat distribution within the reactor, with waste heat use boosting overall energy efficiency.

Every time new energy inputs for these systems can be reduced, money is saved, and the energy efficiency of the plant is improved.

5. Process Heat Feedback Loops

WHR can also feed right back into the energy-intensive processes that generated the heat in the first place. For instance, steam boilers, which are essential for heating and distillation, can benefit from preheated make-up water, reducing the amount of fuel needed for operation. By feeding recovered heat back into these core processes, chemical manufacturers aren't just recycling energy – they're squeezing every last drop out of it.

Air-to-Water WHR as a Path to Sustainable Growth in the Chemical Industry

Air-to-water waste heat recovery (WHR) systems are a smart, practical solution to some of the biggest headaches in the chemical industry. By capturing and repurposing waste heat, your facility can score a triple win: cutting costs, boosting energy efficiency, and slashing environmental impact. WHR is a strategic move that checks all the boxes for sustainability and compliance.

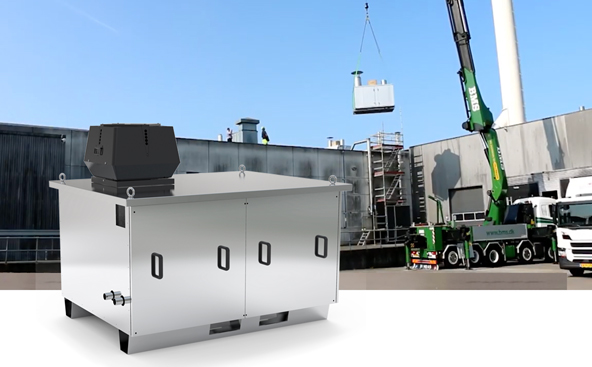

ENERVEX offers a turnkey solution designed to capture and recycle your excess waste heat – the RHX Heat Exchanger System. With features like integrated heat exchangers, plumbing, and an efficient circulation pump, the RHX offers a quick, straightforward installation and minimizes downtime – often less than 30 minutes for a roof-top setup.

To discuss how ENERVEX can support your operational goals, get in touch today!
